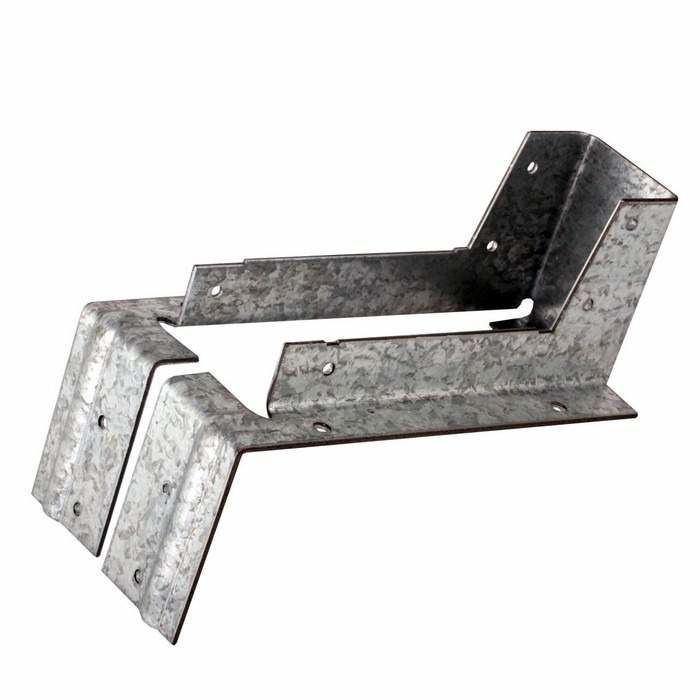

Timber To Masonry Joist Hanger 75 x 225mm
Delivery
Order by 2pm and we'll dispatch it the same day, or Click and Collect from one of our stores. UK Deliveries 2-3 Working Days & Ireland 1-2 Working Days. Next day delivery available by phone.
Chat to an expert
Ask one of our team of experts on 08456 023 393 for technical advice from 8am - 5pm
For supporting timber joists and structural composite timber from masonry walls. A non-welded construction to BS6178. Increased safe working loads, higher side flange and resists rotation. All hangers 150mm deep and above are undersized by 10mm to allow for notching of ceiling joists for flush finish of plasterboard. The back plate of the hanger should be flat against the supporting masonry. Before any loads are applied there should be at least 600mm of cured brick/block work above the hanger. The end of the joist should then be flush against the back of the hanger and side web holes filled with 30mm x 3.75 square twist nails.
