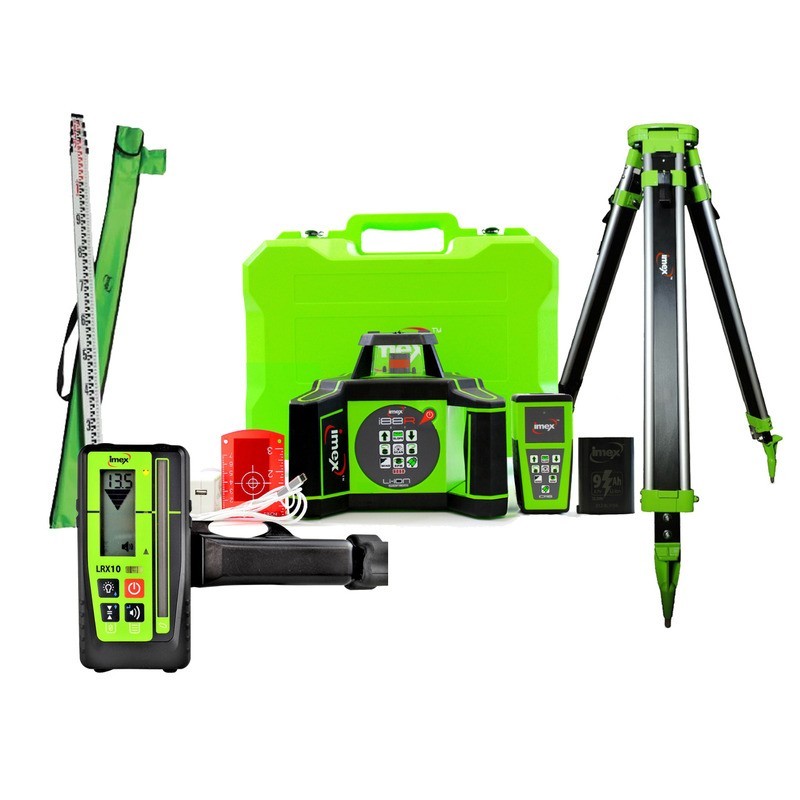

IMEX I88R Rotating Laser and LRX10 Receiver Kit With Staff, Tripod & Receiver

Only 2 left
SKU: 012-I88RX10-KIT
£825.00 ex. VAT
Regular price £990.00 inc. VAT

Delivery

Order by 2pm and we'll dispatch it the same day, or Click and Collect from one of our stores. UK Deliveries 2-3 Working Days & Ireland 1-2 Working Days. Next day delivery available by phone.

Chat to an expert

Ask one of our team of experts on 08456 023 393 for technical advice from 8am - 5pm

The Imex rotating laser level range has been specified by our construction trained team, designed by industry professionals and proven in all conditions to perform a vast range of levelling tasks in an efficient and accurate manner. With self-levelling, grade slope function, scan mode, horizontal and vertical, remote controller and re-chargeable Lithium-Ion batteries, the Imex range represents excellent value with versatile capabilities for a full range of construction functions.

Combined with this is the highly visible heavy duty and robust water and dust-proof case, with a fully enclosed laser diode for years of trouble-free use. A sensor based self-levelling system utilising a level sensor and stepping motor gives excellent levelling ability and enhanced accuracy. The simplified design elements and robust componentry also mean reduced calibration and service requirements.

This laser is supplied with an LRX10 detector, 2x 9.0Ah batteries, car charger, USB cable, remote control unit and target plate in a hard carry case, plus a SJA30F tripod and 5 metre staff.

I88R 600m Range Rotating Laser Level
Self Levelling Range - +/-5°
Working Distance - 600m Diameter
Function - Horizontal/Vertical
Scan Mode - Yes, 0°, 10°, 45°, 90°, 180°
Slope Mode - Yes – Single manual grade to 5° 8.8%
Accuracy - 1.5mm at 30m
Rotation Speeds - 0, 60, 120, 300, 600 rpm
Waterproof/Shockproof - IP66
Light Source - Red 635nm Class II
Power - 9 Ah 3.7v lithium-ion
Detector - LRX10 Double Sided
Working time (continuous use) - 40hrs approx.
USBC Charging - Yes, including 12v car charger
High Wind Sensitivity Re-set - Yes
Weight – 2.48kg

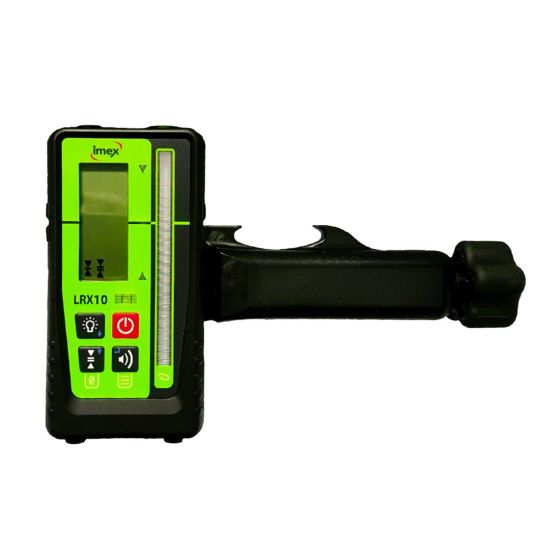

LRX10 90mm Digital Receiver Red/Green Rotary
Detection Window - 60mm +30 to -30
Detection Window - 90mm
Reading increments - 0.5mm up to 10.00mm

Supplied With:
1 x I66R 400m Range Rotating Laser Level
1 x LRX10 90mm Digital Receiver Red/Green Rotary Digital Detector

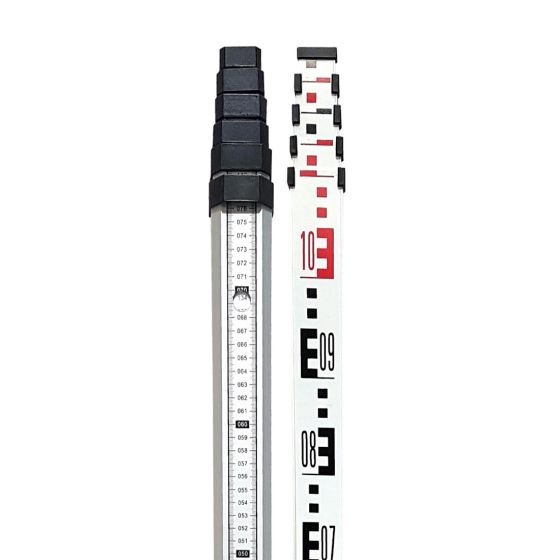

1 x IMEXLS5 5m Metric-E Levelling Staff

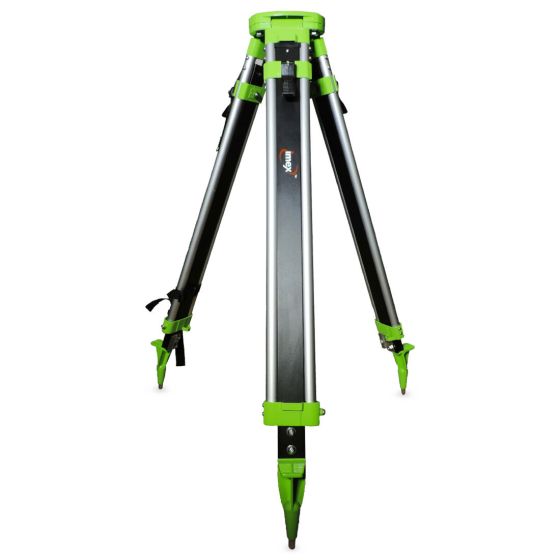

1 x SJA30 Flat Top Aluminium Tripod
